Super efficiency

Preparing…

Import modules and prepare data.

import matplotlib.pyplot as plt
import pandas as pd

from Pyfrontier.frontier_model import EnvelopDEA

supply_chain_df = pd.DataFrame(
    {"cost": [1, 2, 4, 6, 4], "day": [4, 2, 1, 1, 4], "profit": [2, 2, 2, 2, 2]}
)
supply_chain_df

	cost	day	profit
0	1	4	2
1	2	2	2
2	4	1	2
3	6	1	2
4	4	4	2

Fit dea model.

The necessity inputs are inputs and outputs. The result has below belongings.

dea = EnvelopDEA("CRS", "in", super_efficiency=True)
dea.fit(
    supply_chain_df[["day", "cost"]].to_numpy(),
    supply_chain_df[["profit"]].to_numpy(),
)

dea.result[1]

EnvelopResult(score=1.25, id=1, dmu=DMU(input=array([2, 2]), output=array([2]), id=1), weights=[0.5, 0.5, 0.0, 0.0], x_slack=[], y_slack=[], orientation='in')

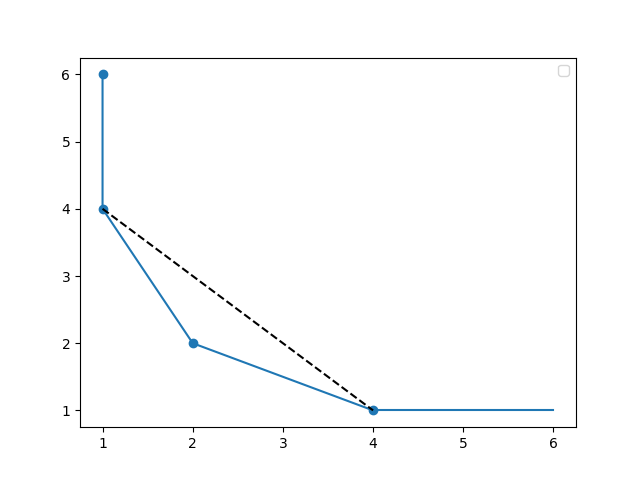

plt.figure()
plt.plot(
    [r.dmu.input[0] for r in dea.result[:-1]],
    [r.dmu.input[1] for r in dea.result[:-1]],
    "-o",
)
plt.plot([4, 6], [1, 1], color="C0")
plt.plot([1, 4], [4, 1], color="black", linestyle="--")
plt.legend()
plt.show()

/home/runner/work/PyDEA/PyDEA/tutorials/build/01_usecase/04_super_efficiency.py:45: UserWarning: No artists with labels found to put in legend.  Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
  plt.legend()
